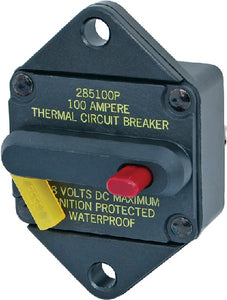

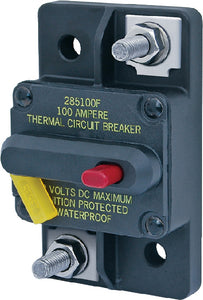

Wire, terminals and circuit protection carry and protect every circuit on board. Correct sizing and good connections prevent voltage drop and heat. This is the Blue Sea Systems 285-series thermal circuit breakers.
Key details
Ratings and measurements: to 200 amp, operating voltage 48 volts
Use with: 25 to 200 amp loads when switching; 185-Series circuit breakers; 30 minutes
Approvals and ratings mentioned: IP67
Part numbers by option
120 / Surface: 632085071882 (UPC 632085071882)
30 / Surface: 632085071813 (UPC 632085071813)
25 / Surface: 632085071806 (UPC 632085071806)
60 / Surface: 632085071844 (UPC 632085071844)
70 / Surface: 632085071851 (UPC 632085071851)
150 / Panel: 632085070892 (UPC 632085070892)
80 / Surface: 632085071868 (UPC 632085071868)
120 / Panel: 632085070885 (UPC 632085070885)
100 / Surface: 632085071875 (UPC 632085071875)
100 / Panel: 632085070878 (UPC 632085070878)
80 / Panel: 632085070861 (UPC 632085070861)
70 / Panel: 632085070854 (UPC 632085070854)
60 / Panel: 632085070847 (UPC 632085070847)
40 / Panel: 632085070823 (UPC 632085070823)
25 / Panel: 632085070809 (UPC 632085070809)
150 / Surface: 632085071899 (UPC 632085071899)
50 / Surface: 632085071837 (UPC 632085071837)
40 / Surface: 632085071820 (UPC 632085071820)
Before you order: Size wire for the current and the round trip length, use tinned marine wire and terminals, and protect each circuit with a fuse or breaker rated for the wire.
Specifications
Brand: Blue Sea Systems
Category: Electrical > Circuit Breakers
Package dimensions: 7.9 x 4.7 x 2.3 in
Shipping weight: 0.34 lb
Color or finish: blue
Installation and care: Crimp with the correct tool, seal connections with adhesive lined heat shrink where moisture is present, and inspect regularly for corrosion.
